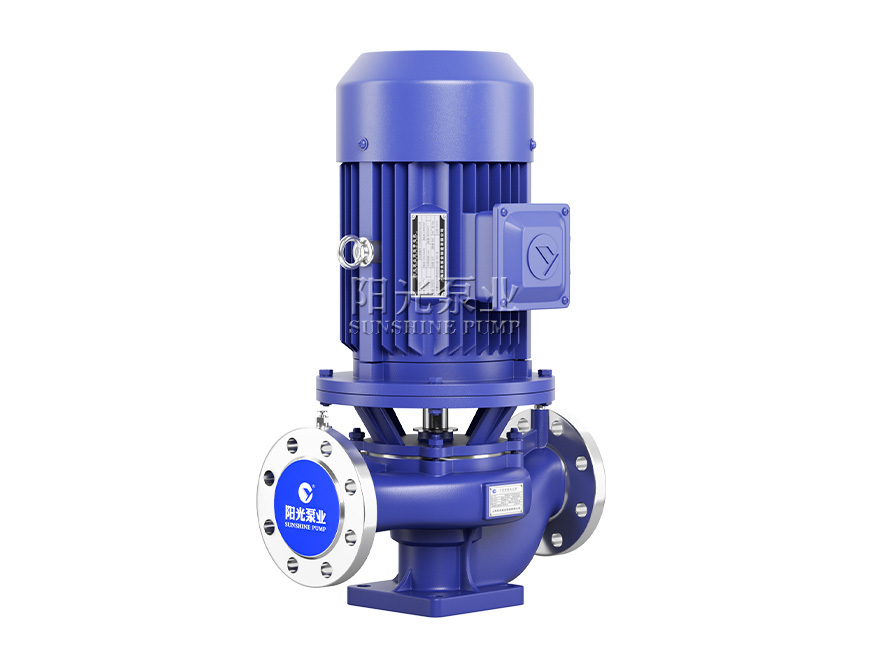

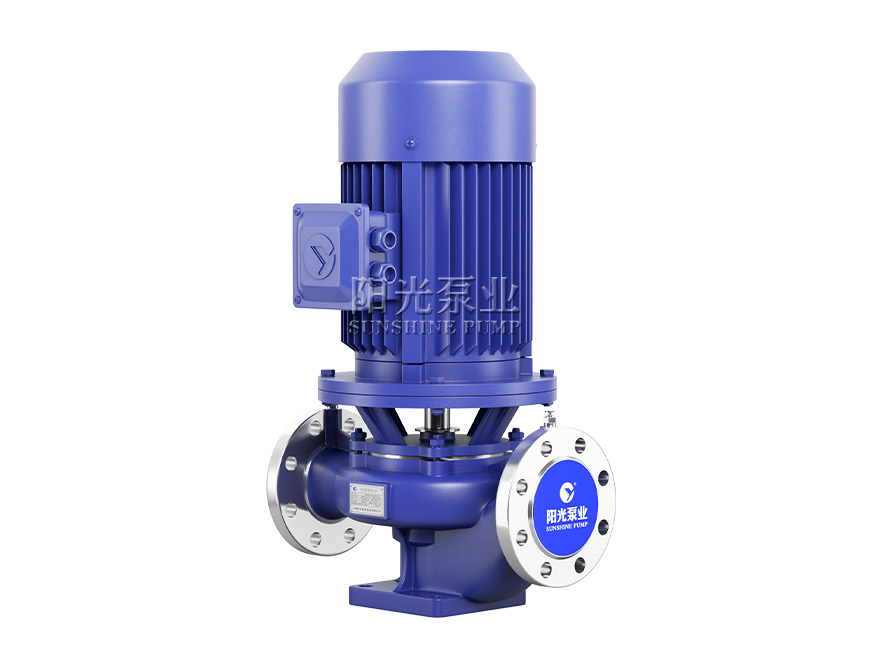

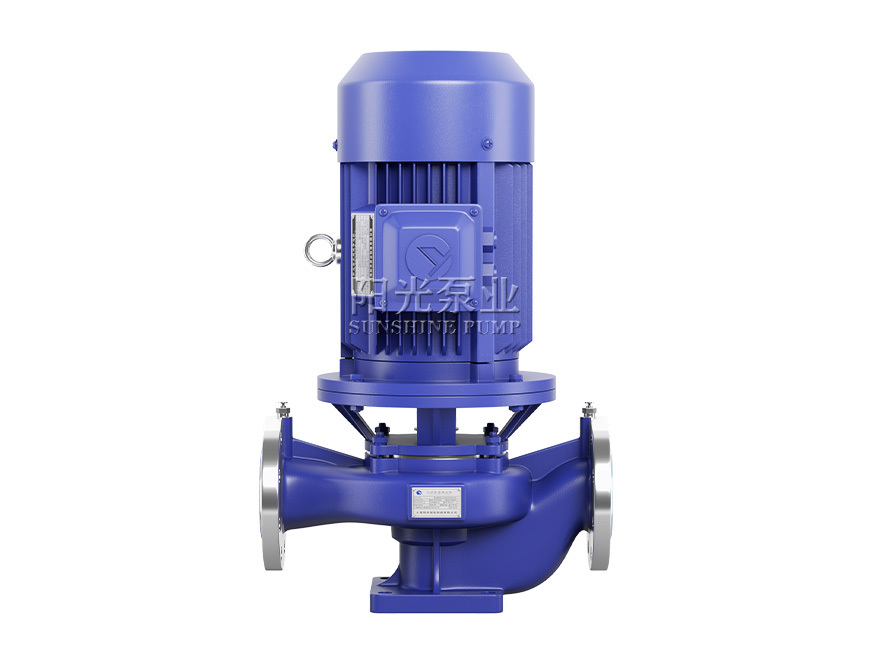

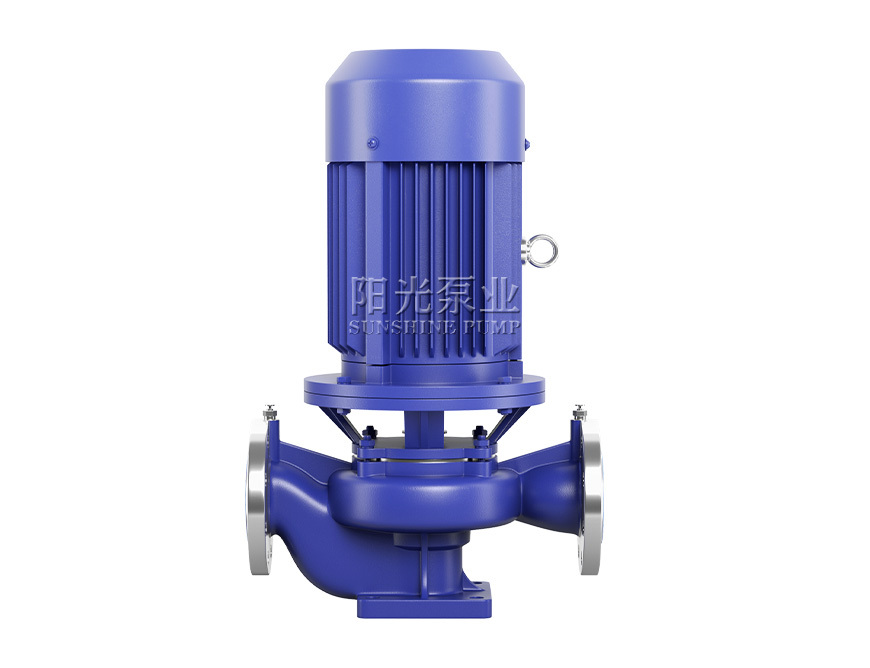

ISG/IHG型立式管道离心泵

泵为铸铁材质立式结构,进出口口径相同,占用面积小

ISG/IHG型立式管道离心泵 三维视频
点击播放
产品简介

ISG/IHG立式管道离心泵,是上海阳光泵业科技人员联合国内水泵专家选用优秀水力模型,采用IS型离心泵之性能参数,在一般立式泵的基础上进行巧妙组合设计而成。同时根据使用温度、介质等不同在ISG型基础上派出适用热水、高温、腐蚀性化工泵、油泵。具有高效节能、噪音低、性能可靠等优点。

产品特点

·泵为立式结构,进出口口径相同,且位于同一中心线上,可像阀门一样安装于管路之中。

·叶轮直接安装在电机的加长轴上,轴向尺寸短,结构紧凑美观,占地面积小,建筑投入低,加上防护罩则可置于户外使用。

·泵与电机轴承配置合理,能有效地平衡泵运转产生的径向和轴向负荷,从而保证了泵的运行平稳,振动小、噪音低。

·轴封采用机械密封或机械密封组合,采用进口钛合金密封环、中型耐高温机械密封和硬质合金材质,耐磨密封,能有效地延长使用寿命。

·安装检修方便,无需拆动管道路系统,只要卸下泵联体座螺母即可抽出全部转子部件。

·可根据管路布置的要求采用泵的竖式和横式安装,可根据使用要求即流量和扬程的需要采用泵的串、并联运行方式。

适用范围

·ISG型立式管道离心泵,供输送清水及物理化学性质类似于清水的其他液体之用,适用于工业和城市给排水等冷暖水循环增压及设备配套,使用温度T<80℃。

·IHG型立式管道化工泵,供输送不含固体颗粒,具有腐蚀性,粘度类似于水的液体,适用于石油、化工、电力、造纸、食品制药和合成纤维等部门,使用温度为-20℃~+120℃。

结构图纸

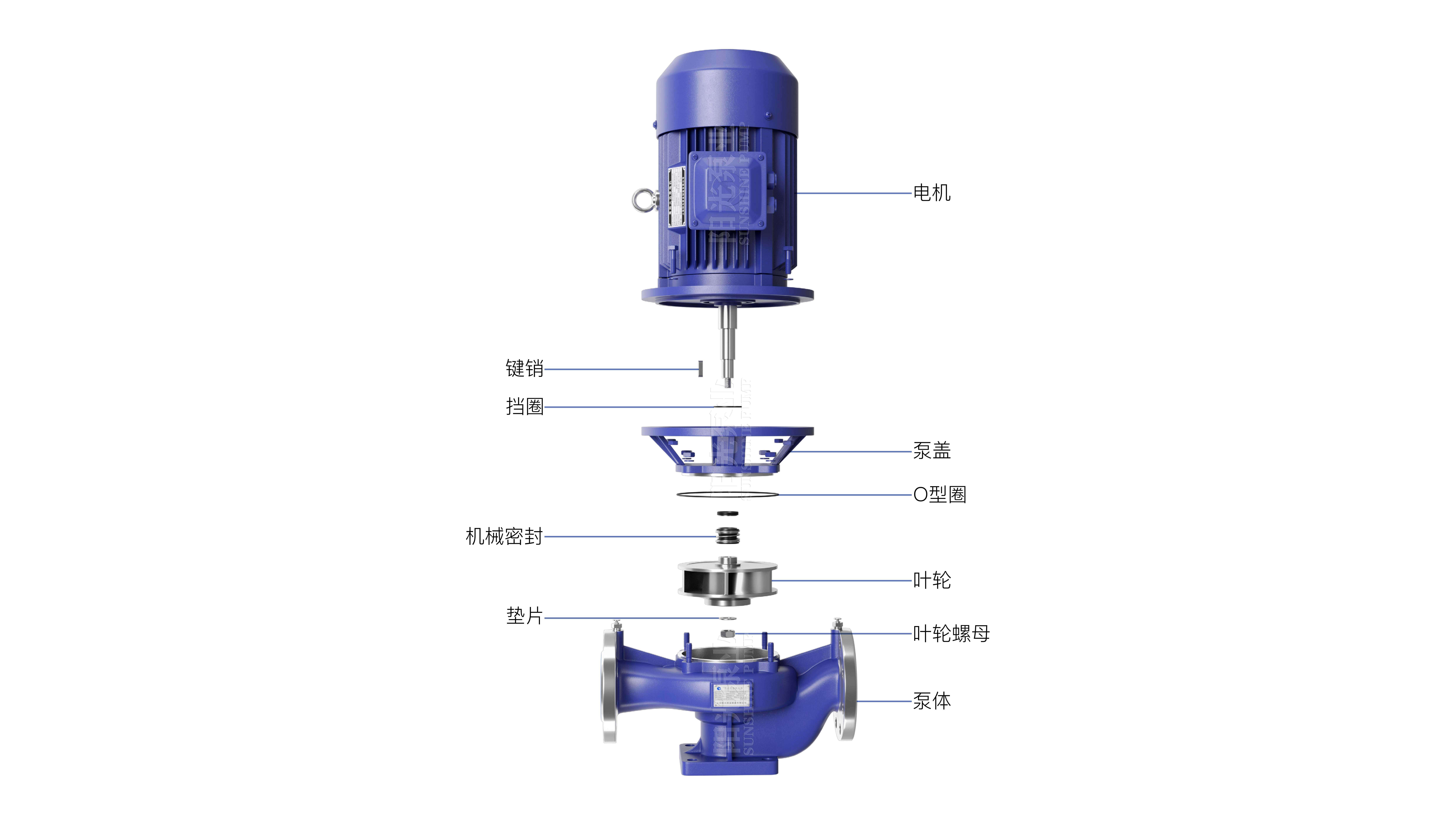

ISG立式管道离心泵-爆炸图(带水印-16号)宽

性能参数

序号型号流量扬程
(m)
效率
(%)
转速
(r/min)
电机功率
(kW)
必须汽蚀余量
(NPSH)r
重量
(kg)
(m³/h)(L/s)
120-1101.80.5162528000.372.325
2.50.69153428000.372.3
3.30.9113.53528000.372.3
220-1601.80.5331929000.752.329
2.50.69322529000.752.3
3.30.91302329000.752.3
325-1102.80.78163429000.552.326
41.11154229000.552.3
5.21.4413.54129000.552.3
425-1252.80.7820.62829000.752.328
41.11203629000.752.3
5.21.44183529000.752.3
525-125A2.50.69173529000.552.327
3.61163529000.552.3
4.61.2814.43529000.552.3
625-1602.80.78332429001.52.339
41.11322429001.52.3
5.21.44302429001.52.3
725-160A2.60.12293129001.12.334
3.71.03283129001.12.3
4.91.36263129001.12.3
832-1004.512.512.54429000.55227
932-100(I)4.41.2213.24829000.75232
6.31.7512.55429000.752
8.32.3211.35329000.752
1032-1253.50.97224029000.752.328
51.39204429000.752.3
6.51.8184229000.752.3
1132-125A3.10.8617.64329000.552.3
4.51.25164329000.552.3
5.81.6114.44329000.552.3
1232-1606.55324429001.52.339
1332-160A41.1253429001.1238
1432-160(I)4.41.2233.23429002.2247
6.31.75324029002.22
8.32.3230.24229002.22
1532-2004.512.5503229003255
1632-200(I)4.41.2250.52629004243
6.31.755033290042
8.32.324835290042
1732-200A2.80.7844.63429002.2274
41.11444029002.22
5.21.4442.74229002.22
1840-1004.41.2213.24829000.552.332
6.31.7512.55429000.552.3
8.32.3111.35329000.552.3
1940-100A3.91.0810.65229000.372.3
5.61.56105229000.372.3
7.42.0695229000.372.3
2040-1254.41.22214129001.12.334
6.31.75204629001.12.3
8.32.31184329001.12.3
2140-125A3.91.0817.64029000.752.333
5.61.56164529000.752.3
7.42.0614.44129000.752.3
2240-1604.41.22333529002.22.347
6.31.75324029002.22.3
8.32.31304029002.22.3
2340-160A4.11.14293429001.52.343
5.91.64283929001.52.3
7.82.1726.33929001.52.3
2440-160B3.81.0625.53429001.12.338
5.51.53243829001.12.3
7.2222.53729001.12.3
2540-2004.41.225126290042.374
6.31.755033290042.3
8.32.314832290042.3
2640-200A4.11.144536290032.362
5.91.644431290032.3
7.82.174230290032.3
2740-200B3.71.03382929002.22.352
5.31.47362929002.22.3
71.9434.52929002.22.3
2840-2504.41.22822429007.52.3105
6.31.75802829007.52.3
8.32.31742829007.52.3
2940-250A4.11.14722429005.52.398
5.91.64702829005.52.3
7.82.17652729005.52.3
3040-250B3.71.0661.523290042.377
5.31.536027290042.3
71.945626290042.3
3140-100(I)8.82.4413.25529001.12.334
12.53.4712.56229001.12.3
16.34.5311.36029001.12.3
3240-100(I)A82.2210.66029000.752.332
113.05106029000.752.3
14.54.0396029000.752.3
3340-125(I)8.82.4421.24929001.52.338
12.53.47205829001.52.3
16.34.5317.85729001.52.3
3440-125(I)A82.22175729001.12.333
113.05165729001.12.3
14.54.03145729001.12.3
3540-160(I)8.82.443345290032.356
12.53.473252290032.3
16.34.533051290032.3
3640-160(I)A8.22.28294429002.22.347
11.73.25285129002.22.3
15.24.22265029002.22.3
3740-160(I)B7.32.38235029001.52.343
10.42.89225029001.52.3
13.53.7520.55029001.52.3
3840-200(I)8.82.4451.23829005.52.385
12.53.47504629005.52.3
16.34.53484629005.52.3
3940-200(I)A8.32.314537290042.375
11.73.254445290042.3
15.34.254245290042.3
4040-200(I)B7.52.083744290032.363
10.62.943644290032.3
13.83.833444290032.3
4140-250(I)8.82.4481.2312900112.3145
12.53.4780382900112.3
16.34.5377.5402900112.3
4240-250(I)A8.22.28713829007.52.395
11.73.22703829007.52.3
15.24.22683829007.52.3
4340-250(I)B7.62.1161.43729005.52.394
10.83603729005.52.3
143.89583729005.52.3
4440-250(I)C7.11.9753.23629005.52.388
102.78523629005.52.3
13.13.6450.43629005.52.3
4550-1008.82.4413.65529001.12.336
12.53.4712.56229001.12.3
16.34.5311.36029001.12.3
4650-100A82.22116029000.752.335
113.05106029000.752.3
14.54.0396029000.752.3
4750-1258.82.4421.54929001.52.343
12.53.47205829001.52.3
16.34.5317.85729001.52.3
4850-125A82.22175729001.12.338
113.05165729001.12.3
14.54.03145729001.12.3
4950-1608.82.443345290032.359
12.53.473252290032.3
16.34.533051290032.3
5050-160A8.22.28294429002.22.351
11.73.25285129002.22.3
15.24.22265029002.22.3
5150-160B7.32.38235029001.52.347
10.42.89225029001.52.3
13.53.7520.55029001.52.3
5250-2008.82.44523829005.52.3101
12.53.47504629005.52.3
16.34.53484629005.52.3
5350-200A8.32.3145.837290042.380
11.73.254445290042.3
15.34.254845290042.3
5450-200B7.52.083744290032.368
10.62.943644290032.3
13.83.833444290032.3
5550-2508.82.4482292900112.3160
12.53.4780382900112.3
16.34.5377.5402900112.3
5650-250A8.22.2871.53829007.52.3115
11.63.22703829007.52.3
15.24.22683829007.52.3
5750-250B7.62.1161.43729005.52.3114
10.83603729005.52.3
143.89583729005.52.3
5850-250C7.11.9753.23629005.52.3108
102.78523629005.52.3
13.13.6450.43629005.52.3
5950-100(I)17.54.8613.76729001.52.541
256.9412.56929001.52.5
32.59.0310.56929001.52.5
6050-100(I)A15.64.3116529001.12.536
22.36.19106729001.12.5
298.18.46829001.12.5
6150-125(I)17.54.8621.560290032.556
256.942068290032.5
32.59.031867290032.5
6250-125(I)A15.64.33175829002.22.548
22.36.19166629002.22.5
298.113.66529002.22.5
6350-160(I)17.54.6834.454290042.572
256.943263290042.5
32.59.0327.560290042.5
6450-160(I)A16.44.563054290032.571
23.46.52862290032.5
30.48.442459290032.5
6550-160(I)B154.17265829002.22.559
21.66245829002.22.5
287.7820.65829002.22.5
6650-200(I)17.54.8652.74929007.52.5108
256.94505829007.52.5
32.59.0345.55929007.52.5
6750-200(I)A16.44.5646.44829005.52.5107
23.56.53445729005.52.5
30.58.47405829005.52.5
6850-200(I)B15.24.224055290042.5100
21.86.063855290042.5
28.37.8634.555290042.5
6950-250(I)17.54.8682392900152.5175
256.9480502900152.5
32.59.0376.5522900152.5
7050-250(I)A16.44.5671.5392900112.5165
23.46.570502900112.5
30.58.4767522900112.5
7150-250(I)B154.17613829007.52.5
21.66604929007.52.5
287.7857.45429007.52.5
7250-315(I)17.54.86128302900302.5310
256.94125402900302.5
32.59.03122442900302.5
7350-315(I) A16.64.16115302900222.5245
23.76.58113402900222.5
318.6110442900222.5
7450-315(I) B15.74.36
39290018.52.5215
22.56.2510139290018.52.5
29.28
39290018.52.5
7550-315(I) C14.4486382900152.5195
20.65.7285382900152.5
26.87.4483382900152.5
7665-10017.54.8613.76729001.52.546
256.9412.56929001.52.5
32.59.0310.56929001.52.5
7765-100A15.64.3116529001.12.541
22.36.19106729001.12.5
298.18.46829001.12.5
7865-12517.54.8621.560290032.558
256.942068290032.5
32.59.031867290032.5
7965-125A15.64.33175829002.22.549
22.36.19166629002.22.5
298.114.46529002.22.5
8065-16017.54.8634.454290042.575
256.943263290042.5
32.59.0327.560290042.5
8165-160A16.44.563054290032.5
23.46.52862290032.5
30.48.442459290032.5
8265-160B154.17265829002.22.563
21.66245829002.22.5
287.7820.65829002.22.5
8365-20017.54.8652.74929007.52.5107
256.94505829007.52.5
32.59.0345.55929007.52.5
8465-200A16.44.5646.44829005.52.5
23.56.53445729005.52.5
30.58.47405829005.52.5
8565-200B15.24.224055290042.5100
21.86.063855290042.5
28.37.8634.555290042.5
8665-25017.54.8682392900152.5180
256.9480502900152.5
32.59.0376.5522900152.5
8765-250A16.44.5671.5392900112.5170
23.46.570502900112.5
30.58.4767522900112.5
8865-250B154.17613829007.52.5
21.66604929007.52.5
287.7857.45429007.52.5
8965-31517.54.8612732200302.5320
256.9412540200302.5
32.59.0312244200302.5
9065-315A16.64.61115322900222.5255
23.76.58113402900222.5
318.6110442900222.5
9165-315B15.74.3610339290018.52.5
22.56.2510139290018.52.5
29.289839290018.52.5
9265-315C14.4486382900152.5205
20.65.7285382900152.5
26.87.4483382900152.5
9365-100(I)359.7213.86729003363
5013.912.573290033
6518.11070290033
9465-100(I)A31.38.7116629002.2353
44.712.4107229002.23
5816.186929002.23
9565-125(I)359.72226729005.5399
5013.9207229005.53
6518.1177029005.53
9665-125(I)A31.38.717.56629004378
4512.51671290043
5816.113.669290043
9765-160(I)359.27356329007.53103
5013.9327129007.53
6518.1287029007.53
9865-160(I)A32.79.130.66229005.53
46.713287029005.53
6116.9246929005.53
9965-160(I)B30.38.4266929004397
43.3122469290043
56.315.62169290043
10065-200(I)359.7253.5552900153176
5013.150672900153
6516.946682900153
10165-200(I)A32.89.147542900113166
4713.144662900113
6116.940672900113
10265-200(I)B30.58.540.66529007.53114
43.512.1386529007.53
56.615.733.46529007.53
10365-250(I)359.7283522900223235
5013.980592900223
6518.172602900223
10465-250(I)A32.597352290018.53105
46.7137059290018.53
6116.96360290018.53
10565-250(I)B308.362582900153180
43.31260582900153
5615.654582900153
10665-315(I)359.27128442900373350
5013.9125542900373
6518.1121572900373
10765-315(I)A32.59112.6432900303335
46.512.9110542900303
60.516.8106.4572900303
10865-315(I)B318.6102.5532900303
44.512.4100532900303
5816.198532900303
10965-315(I)C298.187512900223270
4111.485512900223
53.614.983512900223
11080-100359.7213.86729003363
5013.912.573290033
6518.11070290033
11180-100A31.38.7116629002.2354
44.712.5107229002.23
5816.186929002.23
11280-125359.72226729005.5399
5013.9207229005.53
6518.1177029005.53
11380-125A31.38.717.56629004379
4512.51671290043
5816.113.669290043
11480-160359.72356329007.53105
5013.9327129007.53
6518.1287029007.53
11580-160A32.79.130.66229005.53
46.713287029005.53
6116.9246929005.53
11680-160B30.38.4266929004398
43.3122469290043
56.315.62169290043
11780-200359.7253.5552900153175
5013.950672900153
6518.146682900153
11880-200A32.89.147542900113165
4713.144662900113
6116.940672900113
11980-200B30.58.540.66529007.53115
43.512.1386529007.53
56.615.733.46529007.53
12080-250359.7283522900223240
5013.980592900223
6518.172602900223
12180-250A32.597352290018.53210
46.7137059290018.53
6116.96360290018.53
12280-250B308.362582900153185
43.31260582900153
5615.654582900153
12380-315359.72128432900373355
5013.9125542900373
6518.1122572900373
12480-315A32.59112.6432900303340
46.512.9110542900303
60.516.8107.4572900303
12580-315B318.6102.5532900303
44.512.4100532900303
5816.198532900303
12680-315C298.198512900223275
4111.485512900223
53.614.983512900223
12780-350359.72146552900553570
5013.9150662900553
6518.1142672900553
12880-350A318.6138.4652900453470
44.512.4142652900453
5816.1134.8652900453
12980-350B298.1131.4632900373440
4111.4135632900373
53.614.9127.8632900373
13080-100(I)7019.413.66629005.54.5108
10027.812.57629005.54.5
13036.1117529005.54.5
13180-100(I)A62.617.41164290044.587
8924.71074290044.5
11632.28.874290044.5
13280-125(I)7019.423.5702900114.5163
10027.820762900114.5
13036.114652900114.5
13380-125(I)A62.617.4196829007.54.5113
8924.7167429007.54.5
11632.2116529007.54.5
13480-160(I)7019.436.5702900154.5184
10027.832762900154.5
13036.124652900154.5
13580-160(I)A65.418.232682900114.5174
93.52628742900114.5
121.633.821672900114.5
13680-160(I)B60.616.8277229007.54.5
86.624.1247229007.54.5
112.531.3187229007.54.5
13780-200(I)7019.454652900224.5251
10027.850742900224.5
13036.142732900224.5
13880-200(I)A65.418.247.567290018.54.5220
93.5264473290018.54.5
121.633.83772290018.54.5
13980-200(I)B6116.941712900154.5198
8724.238712900154.5
11331.432712900154.5
14080-250(I)B6116.965662900224315
8724.260662900224
11331.451662900224
14180-315(I)7019.4132552900754675
10027.8125662900754
13036.1114672900754
14280-315(I)A66.518.5119552900554535
9526.4113662900554
123.634.3103672900554
14380-315(I)B6317.5106.6652900454420
9025101652900454
11732.592652900454
14480-315(I)C5816.190632900374366
8222.885632900374
10729.776632900374
145100-1007019.413.66629005.54.5113
10027.812.57629005.54.5
13036.1117529005.54.5
146100-100A62.617.41164290044.591
89471074290044.5
11632.28.874290044.5
147100-1257019.423.5702900114.5169
10027.820762900114.5
13036.114652900114.5
148100-125A62.617.4196829007.54.5118
8924.7167429007.54.5
11632.2116329007.54.5
149100-1607019.436.5702900154.5191
10027.832762900154.5
13036.124652900154.5
150100-160A65.418.232682900114.5181
93.52628742900114.5
121.633.821672900114.5
151100-160B60.616.8277229007.54.5
86.624.1247229007.54.5
112.531.3187229007.54.5
152100-2007019.454652900224245
10027.850742900224
13036.142732900224
153100-200A65.418.247.564290018.54215
93.5264473290018.54
121.633.83772290018.54
154100-200B6116.941712900154193
8724.238712900154
11331.432712900154
155100-2507019.487622900374345
10027.880692900374
13036.168682900374
156100-250A65.418.276612900304330
93.52670682900304
121.633.859.5672900304
157100-250B6116.965662900224
8724.260662900224
11331.451662900224
158100-3157019.4132552900754689
10027.8125662900754
13036.1114672900754
159100-315A66.518.5119652900554549
9526.4113662900554
123.634.3103672900554
160100-315B6317.5106.6652900454439
9025101652900454
11732.592652900454
161100-315C5816.190632900374385
8222.885632900374
10729.776632900374
162100-100(I)9626.714642900114.5115
16044.412.5732900114.5
19253.310702900114.5
163100-125(I)9626.724622900154.5168
16044.420742900154.5
19253.314692900154.5
164100-125(I)A8423.320642900114.5
1403917722900114.5
16846.712682900114.5
165100-160(I)9626.736692900225.6210
16044.432792900225.6
19253.327752900225.6
166100-160(I)A8423.33266290018.55
140392876290018.55
16846.723.572290018.55
167100-200(I)9626.753692900375.2402
16044.450792900375.2
19253.345782900375.2
168100-200(I)A8423.348642900304.5395
1403945742900304.5
16846.740732900304.5
169100-200(I)B6016.743722900224.5360
10027.840722900224.5
12033.336722900224.5
170100-250(I)9626.783652900554.8560
16044.480772900554.8
19253.372742900554.8
171100-250(I)A8423.375602900454.5420
1403972722900454.5
16846.765692900454.5
172100-250(I)B6016.768702900374.5400
10027.865702900374.5
12033.358702900374.5
173100-3506016.7153.6722900904950
10027.8150572900904
12033.3142742900904
174100-350A6116.9145.6752900754830
8724.2142752900754
11331.4134752900754
175100-350B5816.1138.6752900554600
8222.8135752900554
10729.7127752900554
176125-1009626.713822900114180
16044.412.5822900114
19253.312822900114
177125-100A8623.910.47729007.54125
14339.7107729007.54
17247.89.67729007.54
178125-1259626.722.6802900154220
16044.420802900154
19253.317802900154
179125-125A8623.918772900114210
14339.716772900114
17247.813.6772900114
180125-1609626.736782900224265
16044.432782900224
19253.328782900224
181125-160A902531.576290018.54230
15041.72876290018.54
1805024.576290018.54
182125-160B8321.727732900154215
13838.324732900154
16646.121732900154
183125-2009626.755772900375.5395
16044.450772900375.5
19253.346772900375.5
184125-200A902548.4762900305.5380
15041.744762900305.5
1805040.5762900305.5
185125-200B8321.741.3752900225.5320
13838.337.5752900225.5
16646.134.5752900225.5
186125-2509626.787752900555580
16044.480752900555
19253.373752900555
187125-250A902576742900455.5490
15041.770742900455.5
1805084742900455.5
188125-250B8321.765732900375.5430
13838.360732900375.5
16646.155732900375.5
189125-3159626.7133702900905790
16044.7125702900905
19253.3119702900905
190125-315A9025117702900755710
15041.7110702900755
18050104.6702900755
191125-315B8623.9106.4692900755705
14339.7100692900755
17247.895.2692900755
192125-315C80.522.496672900555585
13437.288672900555
16144.786672900555
193150-1259626.722.6662900114210
16044.724762900114
19253.317762900114
194150-125A9025187729007.54130
15041.7167729007.54
1805013.67729007.54
195150-1609626.736752900224270
16044.432752900224
19253.327752900224
196150-160A90253276290018.54230
15041.72876290018.54
1805023.576290018.54
197150-160B8423.327732900154220
1403924732900154
16846.721732900154
198150-20014038.913.8681450153265
20055.612.5781450153
26072.210.6781450153
199150-200A12534.711661450113244
17649.710761450113
232.564.68.5761450113
200150-200B8423.341752900224275
1403938752900224
16846.734752900224
201150-25014038.921.873145018.53300
20055.62079145018.53
26072.21777145018.53
202150-250A12935.818.5721450153262
184.451.217781450153
24066.714.4761450153
203150-250B11732.515.2761450113241
16746.414761450113
217.560.412761450113
204150-31514038.933.8701450302.5410
20055.632781450302.5
26072.228731450302.5
205150-315A13136.429.5691450223.5335
18751.928771450223.5
24367.524.5771450223.5
206150-315B12133.52576145018.53.5315
17348.12476145018.53.5
22562.52176145018.53.5
207150-3509626.7153.68029001105.5970
16044.41508029001105.5
19253.3142.88029001105.5
208150-350A9025145.6702900905.2790
15041.7142702900905.2
18050134.8702900905.2
209150-350B8423.3138.6652900755.5705
14039135762900755.5
16846.7127.8742900755.5
210150-40014038.953681450453.5490
20055.650751450453.5
26072.244711450453.5
211150-400A13136.446.6671450373.5454
18751.944741450373.5
24367.538.3701450373.5
212150-400B12233.940731450303.5435
17448.338731450303.5
226.562.933731450303.5
213150-400C11231.134711450223.5365
16044.432711450223.5
20857.828711450223.5
214150-250(I)12033.387652900754.5702
20055.680762900754.5
24066.772742900754.5
215150-250(I)A11231.176642900554.5561
18751.970752900554.5
22462.263732900554.5
216150-250(I)B10428.965632900454.5460
17348.160742900454.5
20857.854722900454.5
217150-315(I)12033.31335829001104.5980
20055.61257329001104.5
24066.71207529001104.5
218150-315(I)A11231.1116572900904.5800
18751.9110722900904.5
22462.2105742900904.5
219150-315(I)B10428.9100552900754.5724
17348.195702900754.5
20857.891722900754.5
220200-20014038.913.8681450153265
20055.612.5781450153
26072.210.6781450153
221200-200A12534.711661450113244
17949.710761450113
232.564.68.5761450113
222200-25014038.921.873145018.53305
20055.62079145018.53
26072.21777145018.53
223200-250A12935.818.5721450153267
184.451.217781450153
24066.714.4761450153
224200-250B11732.515.2761450113246
16746.414761450113
217.560.412761450113
225200-31514038.933.8701450303.5417
20055.632781450303.5
26072.228781450303.5
226200-315A13136.429.5691450223.5342
18951.928771450223.5
24367.524.5771450223.5
227200-315B12133.62576145018.53.5322
17348.12476145018.53.5
22562.52176145018.53.5
228200-40014038.953681450453.5498
20055.650751450453.5
26072.244711450453.5
229200-400A13136.446.6671450373.5462
18751.944741450373.5
24367.538.3701450373.5
230200-400B12233.940731450303.5443
17448.638731450303.5
226.562.933731450303.5
231200-400C11231.334711450223.5373
16044.432711450223.5
20857.828711450223.5
232200-200(I)28077.813.4701450224382
400111.112.5801450224
52014410.5791450224
233200-200(I)A25069.410.768145018.54346
35899.41078145018.54
465129.28.577145018.54
234200-250(I)28077.822.2751450304475
400111.420801450304
52014414721450304
235200-250(I)A25069.418731450224405
35899.614781450224
465129.211.2701450224
236200-250(I)B22662.814.470145018.54387
32289.41375145018.54
419116.47.367145018.54
237200-315(I)28077.836731450554675
400111.432801450554
52014426751450554
238200-315(I)A26272.831.5721450454560
374103.928791450454
48613523741450454
239200-315(I)B24267.227781450374535
34696.124781450374
45012519.5781450374
240200-400(I)28077.854.5751450754830
400111.450811450754
52014439771450754
241200-400(I)A26272.848801450754
374103.944801450754
48613534801450754
242200-400(I)B24267.241.4781450555685
34696.138781450555
45012529.6781450555
243200-400(I)C22462.234.9761450455580
32088.932761450455
416115.625761450455
244250-25035097.222781450455620
550152.820821450455
650180.516811450455
245250-250A30083.318.3761450375550
50013917801450375
600166.714801450375
246250-23530083.314731480224.5410
50013912.5781480224.5
600166.711701480224.5
247250-30030083.322781480374.5550
50013920781480374.5
600166.716781480374.5
248250-31535097.234761450755.5890
550152.832801450755.5
650180.528791450755.5
249250-315A30083.329.5741450555.5690
50013928781450555.5
600166.724771450555.5
250250-315B26072.225701450455.5620
45012524741450455.5
520144.420721450455.5
251250-40030083.354.5721480904.51530
50013950721480904.5
600166.739721480904.5
252300-23554015020.57714505551075
72020018811450555
900"25015741450555
253300-235A45012517.2741450455970
60016615791450455
72020012.5771450455
254300-235B420116.714.3731450375925
54015012.8781450375
65018110.5701450375
255300-25054015022.58014505561085
72020020831450556
90025017841450556
256300-250A45013619.5811450456980
60016617811450456
72020014811450456
257300-300540150328214807551230
72020028821480755
90025023821480755
258300-300A45012527.58014807551095
60016624801480755
72020020801480755
259300-300B420116.724781480555980
54015021781480555
65018117781480555
260300-31554015035841480904.51350
72020032841480904.5
90025026841480904.5
261300-315A460127.831.5801480754.51240
65018028801480754.5
80022223.5801480754.5
262300-315B420116.727781480554.51100
58016124781480554.5
70019420781480554.5
263300-380480133.3488497013251900
72020044849701325
90025034849701325
264300-380A444123.341.48097011051700
66618538809701105
833231.430809701105
265300-380B400113.635789709051530
614170.63278970905
764213.13578970905
266300-39054015020.5789805551300
7202001881980555
90025015.576980555
267300-390A45012617.2779804551220
6001671579980455
72020012.875980455
268300-390B40011114749803751100
54015012.577980375
65018011.576980375
269300-4004501255578148011051500
600166507814801105
72020042.57814801105
270300-4805401503179980755
7202002881980755
9002502480980755
271300-480A45012627.4789807551280
6001662480980755
7202002079980755
272300-480B40011124799805551180
5401502179980555
6501801779980555
273350-23560016714801480374.51050
80022212.5831480374.5
96026710.5821480374.5
274350-30060016722.5791480554.51230
80022220821480554.5
96026717.5711480554.5
275350-31560016735.5841480904.51650
80022232841480904.5
96026728.5841480904.5
276350-400600167558314801604.51950
800222508314801604.5
96026745.58314801604.5
277400-300820228237814809061570
108030020781480906
130036116781480906
278400-31582020536.576148013261880
1080300327614801326
1300344277614801326
279500-3001000277.82380148011061800
1200333208014801106
1450403168014801106
280500-315100027834.578148016062070
1200333327814801606
1450403277814801606
资料下载
PDF
下载产品PDF图册资料 PDF下载

文件大小:8.72M

高级工程师
专业为您选型报价

免费电话,无需话费,输入立即沟通

点击立刻咨询

正在呼叫 您将接收到 021-61515991 回拨电话 请稍后!

上海阳光泵业提示您:

请输入正确的手机号码!
确定
关闭
获取产品图册资料

通过手机号验证后将自动下载

手机号码格式不正确,请重新输入
获取验证码

短信验证码已发送,可能会有延后请耐心等待

关闭
高级工程师
专业为您选型报价

免费电话,无需话费,输入立即沟通

正在呼叫 您将接收到 021开头的 回拨电话 请稍后!

上海阳光泵业提示您:

请输入正确的手机号码!
确定
工程师一对一服务

点击立刻咨询

免费电话 在线咨询
