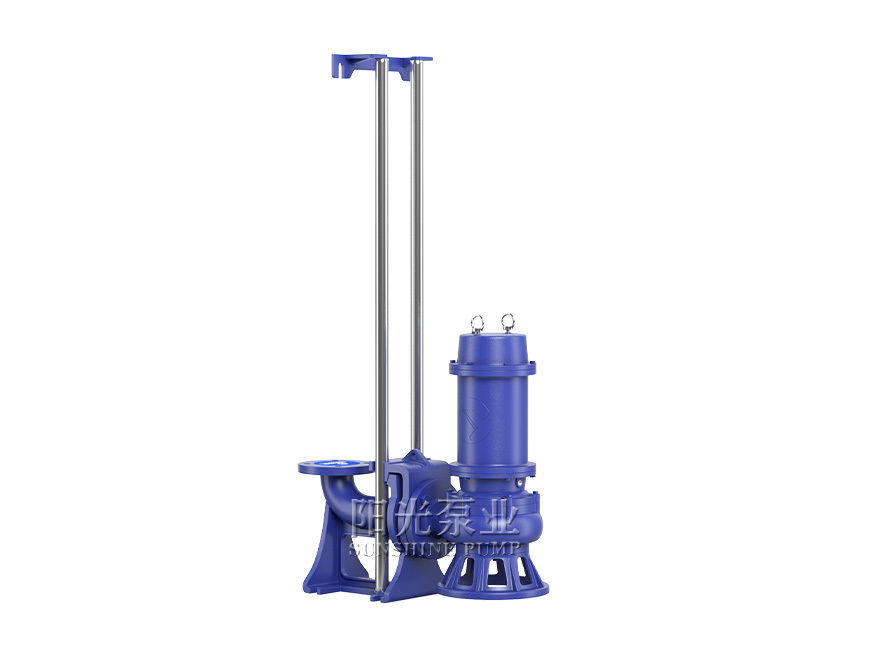

WQ型固定式潜水排污泵

采用独特叶轮结构和新型机械密封,能有效输送长纤维

WQ型固定式潜水排污泵 三维视频
点击播放
产品简介

WQ型无堵塞潜水排污泵是结合国内水泵的使用特点而研制成功的新一代泵类产品,具有节能效果优良、防缠绕、无堵塞、自动安装和自动控制等特点。叶轮与传统叶轮相比,采用单流道或双流道形式,它类似于一截面大小相同的弯管,具有非常好的过流性,配以合理的蜗室,使得该泵具有效率高、叶轮经动静平衡试验,使泵在运行中无振动。

产品特点

·采用独特的单片或双叶片叶轮结构,大大提高了污物通过能力,能有效的通过泵口径的5倍纤维物质与直径为泵口径约50%的固体颗粒。

·机械密封采用新型硬质耐腐的钛化钨材料,可使泵安全连续运行8000小时以上。

·整体结构紧凑、体积小、噪声小、节能效果显著,检修方便,无需建泵房,潜入水中即可工作,大大减少工程造价。

·该泵密封油室内设置有高精度抗干扰漏水检测传感器,定子绕组内预埋了热敏元件,对水泵电机自动保护。

·可根据用户需要配备全自动控制柜,对泵的漏水、漏电过载及超温等进行自动保护,提高了产品的安全性与可靠性。够在全扬程内使用,而保证电机不会过载。

·浮球开关可以根据所需液位变化,自动控制泵的起动与停止,不需专人看管,使用极为方便。

·WQ系列可根据用户需要配备双导轨自动耦合安装系统,安装维修方便简洁。

·有两种不同的安装方式,固定式自动耦合安装系统、移动式自由安装系统。

使用条件

·排污泵系列产品在额定电压为380V,电源频率为50Hz时适用。

·介质温度不超过40摄氏度,介质密度≤1150kg/m3,PH值在5-9范围之间。

·海拔高度不超过1000米。输送介质粘度不超1000CP。

·产品工作运行时必须完全潜入水中,但潜水深度不得超过10。

·产品材质主要为铸铁,不能用于强腐蚀性或含有强腐蚀性的介质中。

结构图纸

WQ排污潜水泵(带水印-16号)11.06

性能参数

 序号
型号

   口径

   (mm)

 流量

 (m³/h)

   扬程

   (m)

   功率

   (kW)

转速

(r/min)

1WQ25-8-22-1.1258221.12900
2WQ32-12-15-1.13212151.12900
3WQ40-15-15-1.54015151.52900
4WQ40-15-20-2.24015202.22900
5WQ50-10-10-0.755010100.752900
6WQ50-20-7-0.75502070.752900
7WQ50-20-15-1.55020151.52900
8WQ50-15-25-2.25015252.22900
9WQ50-18-30-3.050183032900
10WQ50-20-40-7.55020407.52900
11WQ50-24-20-450242042900
12WQ50-25-32-5.55025325.52900
13WQ50-20-55-11502055112900
14WQ50-20-70-15502070152900
15WQ50-20-80-18.550208018.52900
16WQ50-20-90-22502090222900
17WQ65-25-15-2.26525152.22900
18WQ65-37-13-365371332900
19WQ65-25-30-4.065253042900
20WQ65-30-40-7.56530407.52900
22WQ65-35-50-11653550112900
23WQ65-30-60-15653060152900
24WQ65-30-68-18.565306818.52900
25WQ65-30-75-22653075222900
26WQ80-40-7-2.2804072.22900
27WQ80-43-13-380431332900
28WQ80-40-15-480401542900
29WQ80-50-20-5.58050205.52900
30WQ80-65-25-7.58065257.52900
31WQ80-60-30-11806030112900
32WQ80-60-40-15806040152900
33WQ80-60-45-18.580604518.52900
34WQ80-60-50-22806050222900
35WQ100-80-10-4.0100801042900
36WQ100-110-10-5.5100110105.52900
37WQ100-80-20-7.510080207.52900
38WQ100-80-25-111008025112900
39WQ100-80-35-151008035152900
40WQ100-80-40-18.5100804018.52900
41WQ100-80-45-221008045222900
42WQ150-100-20-11 1501002011 2900
43WQ 150-120-15-11 15012015112900
44WQ150-100-30-15  1501003015  2900
45WQ150-120-25-1515012025152900
46WQ150-100-36-18.51501003618.52900
47WQ150-100-40-2215010040222900
48WQ200-180-11-1120018011112900
49WQ200-180-15-1520018015152900
50WQ200-180-18-18.52001801818.52900
51WQ200-200-20-2220020020222900
52WQ80-80-13-5.58080135.51450
53WQ80-80-20-7.58080207.51450
54WQ100-110-10-5.5100110105.51450
55WQ100-100-15-7.5100100157.51450
56WQ100-100-25-1110010025111450
57WQ100-100-30-1510010030151450
58WQ100-100-35-18.51001003518.51450
59WQ100-100-40-2210010040221450
60WQ100-100-57-4510010057451450
61WQ100-100-65-5510010065551450
62WQ100-100-100-1101001001001101450
63WQ100-120-45-3010012045301450
64WQ100-120-50-3710012050371450
65WQ100-120-75-7510012075751450
66WQ100-120-85-9010012085901450
67WQ125-130-15-1112513015111450
68WQ125-130-20-1512513020151450
69WQ150-150-7-5.515015075.51450
70WQ150-145-9-7.515014597.51450
71WQ150-180-11-1115018011111450
72WQ150-180-15-1515018015151450
73WQ150-180-20-18.51501802018.51450
74WQ150-200-20-2215020020221450
75WQ150-240-20-3015024020301450
76WQ150-150-35-3715015035371450
77WQ150-180-45-4515018045451450
78WQ150-200-15-1515020015151450
79WQ150-180-25-2215018025221450
80WQ150-200-50-5515020050551450
81WQ150-200-60-7515020060751450
82WQ150-200-75-9015020075901450
84WQ150-130-30-2215013030221450
85WQ150-180-30-3015018030301450
86WQ150-180-50-5515018050551450
87WQ150-180-80-110150180801101450
88WQ150-200-35-3715020035371450
89WQ150-200-40-4515020040451450
90WQ150-200-70-9015020070901450
91WQ150-200-90-132150200901321450
92WQ150-200-110-1851502001101851450
93WQ150-220-100-1601502201001601450
94WQ200-250-6-7.520025067.51450
95WQ200-300-7-112003007111450
96WQ200-250-11-1520025011151450
97WQ200-250-15-18.52002501518.51450
98WQ200-300-16-2220030016221450
99WQ200-400-10-2220040010221450
100WQ200-400-13-3020040013301450
101WQ200-300-15-2220030015221450
102WQ200-250-22-3020025022301450
103WQ200-350-25-3720035025371450
104WQ200-400-25-4520040025451450
105WQ200-400-30-5520040030551450
106WQ200-350-40-7520035040751450
107WQ200-280-50-9020028050901450
108WQ200-380-28-4520038028451450
109WQ200-300-28-3720030028371450
110WQ200-300-32-4520030032451450
111WQ200-300-40-5520030040551450
112WQ200-300-60-9020030060901450
113WQ200-300-65-110200300651101450
114WQ200-350-10-18.52003501018.51450
115WQ200-350-45-7520035045751450
116WQ200-400-50-9020040050901450
117WQ250-400-5-112504005111450
118WQ200-400-75-132200400751321450
119WQ200-400-85-160200400851601450
120WQ200-400-90-185200400901851450
121WQ250-500-5-152505005151450
122WQ250-500-7-18.5250500718.51450
123WQ250-500-9-222505009221450
124WQ250-500-12-3025050012301450
125WQ250-600-9-302506009301450
126WQ250-600-12-3725060012371450
127WQ250-600-15-4525060015451450
128WQ250-600-20-5525060020551450
129WQ250-600-25-7525060025751450
130WQ250-600-30-9025060030901450
131WQ250-600-40-110250600401101450
132WQ250-600-50-132250600501321450
133WQ250-600-60-160250600601601450
134WQ250-600-70-185250600701851450
135WQ250-750-75-200250750752001450
136WQ250-520-8-22250520822980
137WQ300-650-5-18.5300650518.51450
138WQ300-650-7-223006507221450
139WQ300-800-7-303008007301450
140WQ300-800-9-373008009371450
141WQ300-800-12-4530080012451450
142WQ300-500-15-4530050015451450
143WQ300-800-15-5530080015551450
144WQ300-600-20-5530060020551450
145WQ300-800-20-7530080020751450
146WQ300-950-20-9030095020901450
147WQ300-800-25-9030080025901450
148WQ300-1000-25-1103001000251101450
149WQ300-800-32-110300800321101450
150WQ300-800-36-132300800361321450
151WQ300-800-40-160300800401601450
152WQ300-900-40-185300900401851450
153WQ300-1000-45-2003001000452001450
154WQ300-1000-55-3153001000553151450
155WQ300-1200-45-2503001200452501450
156WQ350-1000-6-3735010006371450
157WQ350-1000-10-55350100010551450
158WQ350-1100-6-373501100637980
159WQ350-1100-10-5535011001055980
160WQ350-1000-15-75350100015751450
161WQ350-1000-18-90350100018901450
162WQ350-1100-38-1853501100381851450
163WQ350-1200-8-4535012008451450
164WQ350-1200-18-9035012001890980
165WQ350-1200-35-160350120035160980
166WQ350-1300-8-453501300845980
167WQ350-1500-12-7535015001275980
168WQ350-1300-20-1103501300201101450
169WQ350-1500-4-303501500430980
171WQ350-1200-18-9035012001890980
172WQ350-1500-20-132350150020132980
173WQ350-1600-16-110350160016110980
174WQ350-1100-28-1323501100281321450
175WQ350-1500-20-132350150020132980
176WQ350-1000-35-1603501000351601450
177WQ350-1200-35-160350120035160980
178WQ350-1300-35-2003501300352001450
179WQ350-1500-45-3153501500453151450
180WQ350-1500-36-2503501500362501450
181WQ400-1300-5-374001300537980
182WQ400-1300-8-5540013008551450
183WQ400-1300-13-75400130013751450
184WQ400-1300-16-90400130016901450
185WQ400-1500-8-554001500855980
186WQ400-1500-15-9040015001590980
187WQ400-1500-17-1104001500171101450
188WQ400-1500-30-2004001500302001450
189WQ400-1600-20-1604001600201601450
190WQ400-1600-22-160400160022160980
191WQ400-1600-25-1854001600251851450
192WQ400-1700-16-1324001700161321450
193WQ400-1800-30-2504001800302501450
194WQ400-2000-36-3154002000363151450
195WQ400-1700-6-454001700645980
196WQ400-1700-10-7540017001075980
197WQ400-1500-8-554001500855980
198WQ400-1700-10-7540017001075980
199WQ400-1800-15-110400180015110980
200WQ400-2000-15-132400200015132980
202WQ400-1600-22-160400160022160980
203WQ400-1500-26-160400150026160980
204WQ400-2000-20-185400200020185980
207WQ400-1800-15-110400180015110980
208WQ400-2200-28-250400220028250980
209WQ400-2300-22-200400230022200980
212WQ500-2000-8-755002000875980
213WQ500-2000-10-9050020001090980
214WQ500-2200-5-555002200555980
215WQ500-2500-8-905002500890740
216WQ500-2500-10-110500250010110980
217WQ500-2600-16-160500260016160980
218WQ500-2700-6-755002700675740
219WQ500-2800-10-132500280010132980
220WQ500-3100-10-132500310010132740
223WQ500-3000-14-160500300014160740
224WQ500-3000-15-185500300015185980
225WQ500-3000-21-250500300021250980
226WQ500-3000-35-400500300035400980
227WQ500-3100-10-132500310010132740
228WQ500-3500-15-200500350015200980
229WQ500-3500-25-315500350025315980
230WQ500-4000-32-550500400032550980
231WQ600-3000-6-906003000690740
232WQ600-3200-7-11060032007110980
233WQ600-3700-8-13260037008132980
234WQ600-3800-6-11060038006110740
235WQ600-4000-8-13260040008132740
236WQ600-3700-10-160600370010160980
237WQ600-4000-10-160600400010160740
238WQ600-3700-12-185600370012185980
239WQ600-4500-12-200600450012200980
240WQ600-4000-18-250600400018250980
241WQ600-4500-20-315600450020315980
242WQ600-5000-22-400600500022400980
243WQ600-5500-25-550600550025550980
